特點：用于吹制高低壓聚乙稀，產品廣泛用于復合膜，包裝膜，農業復蓋膜，紡織品，服裝袋等包裝；主電機采用變頻調節器，增加了主機調速的穩定性，并可節電30%，螺桿料筒采用38鉻鉬鋁。經氮化處理，牽引機架采用升降式，不管吹大、小規格薄膜均能合其冷卻效果達到：
Feature:

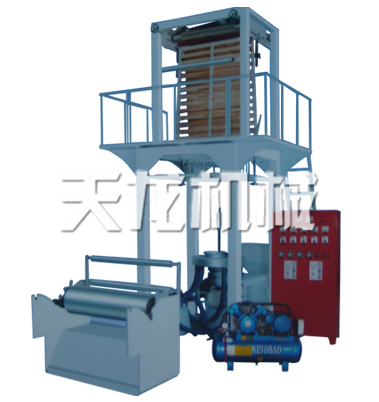

It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag or film for fextile and clothing and other packing material.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.The screw and material barrel adopt 38 chrome –molydbenum aluminum which has been nitrogen treated and the tractiom frame adopts lifting type.No matter what size the film is,big or small ,it can achieve effect of cooling.
主要技術參數（Main Teachnical Parameter）
Main Technical Variables ；
|
型號：Model
|
TL-A50
|
TL-A55
|
TL-A60
|
TL-A65
|
TL-A75
|
|
螺桿直徑
Screw Diameter
|
ф50
|
ф55
|
ф60
|
ф65
|
ф75
|
|
螺桿長徑比
Screw Ratio(L/D)
|
28：1
|
28：1
|
28：1
|
28：1
|
28：1
|
|
螺桿轉速
Screw Speed
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
|
主機功率
Power of Main Motor
|
11
|
15
|
18.5
|
22
|
30
|
|
擠出量
Main Output (kg/h)
|
30
|
40
|
60
|
70
|
100
|
|
薄膜折徑
Max.Folding Width of Film (mm)
|
600mm
|
800mm
|
1000mm
|
1200mm
|
1500mm
|
|
薄膜單面厚度
Single-side Thickness of Film
|
0.01-0.10mm
|
0.01-0.10mm
|
0.01-0.10mm
|
0.01-0.10mm
|
0.01-0.10mm
|
|
總功率
Total Power (kw)
|
22
|
26
|
30
|
36
|
46
|
|
機重 (T)
Weight of Machine
|
2
|
2.3
|
2.6
|
3
|
4
|
|
外形尺寸
Overall Dimension
|
4000×1800
×3600
|
4200×2000
×4000
|
4600×2300
×4200
|
4800×2500
×4500
|
5200×2800
×5000
|
|
